V-Trigger to S-Trigger Conversion

A Moog speciality

The earlier Moog synths uses a trigger system that is different from the mainstream. Today almost all synths use the standard +5V gate impulse for this purpose. But the Moogs use the S-Trigger instead, where the voltage drops to zero.



gear-moog-modular-911-eg-trigger2

Devices capable of sending triggers, may have a built-in setting that changes between the 2 formats.

Converting triggers and gates from e.g. Eurorack and Roland gear can be done with a simple cable with a few components.

This can be purchased from established modular synth outlets, like Schneiders Laden in Berlin.

If you are handy with a soldering iron  you can also make one yourself quite easily.

[gdlr_frame type=”border” align=”left” caption=”Solder your own S-trigger converter”][gdlr_image_link type=”image” image_url=”https://ranum.dk/wp-content/uploads/gear-moog-s-trigger-converter-287×300.jpg” link_url=”https://ranum.dk/wp-content/uploads/gear-moog-s-trigger-converter.jpg” alt=””][/gdlr_frame]

[gdlr_divider type=”solid” size=”50%” ]

Moog models using the S-Trigger system
  • Moog Modular System 15
  • Moog Modular System 35
  • Moog Modular System 55
  • Moog Modular System 3C

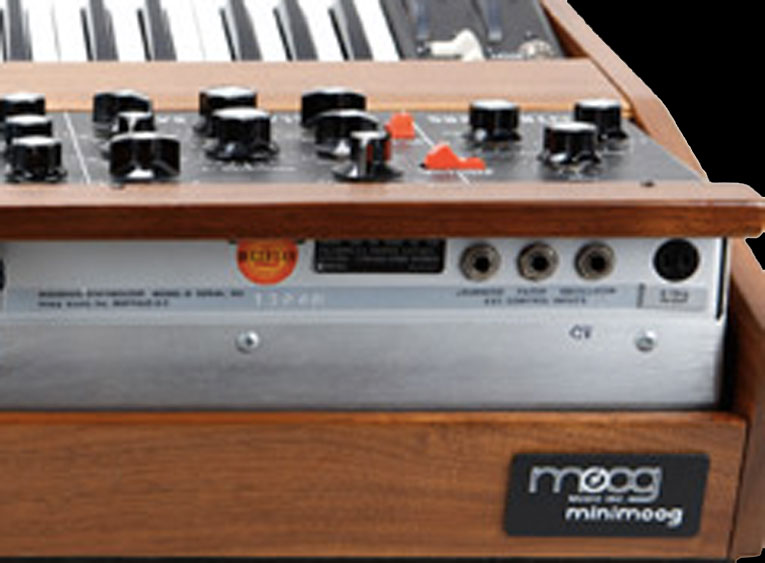

  • Minimoog Model D
  • Moog Sonic 6
  • MicroMoog
  • Moog Liberation
  • Moog Source
  • Moog Taurus
  • Moog Prodigy
  • Moog Rogue
  • Moog Sattelite
  • MinitMoog
  • Moog Ribbon Controller
  • Moog Sample & Hold Controller
  • Moog Drum
  • Moog 1130 Drum Controller
